Gasket paper, thickness 0,25 mm
Beskrivelse

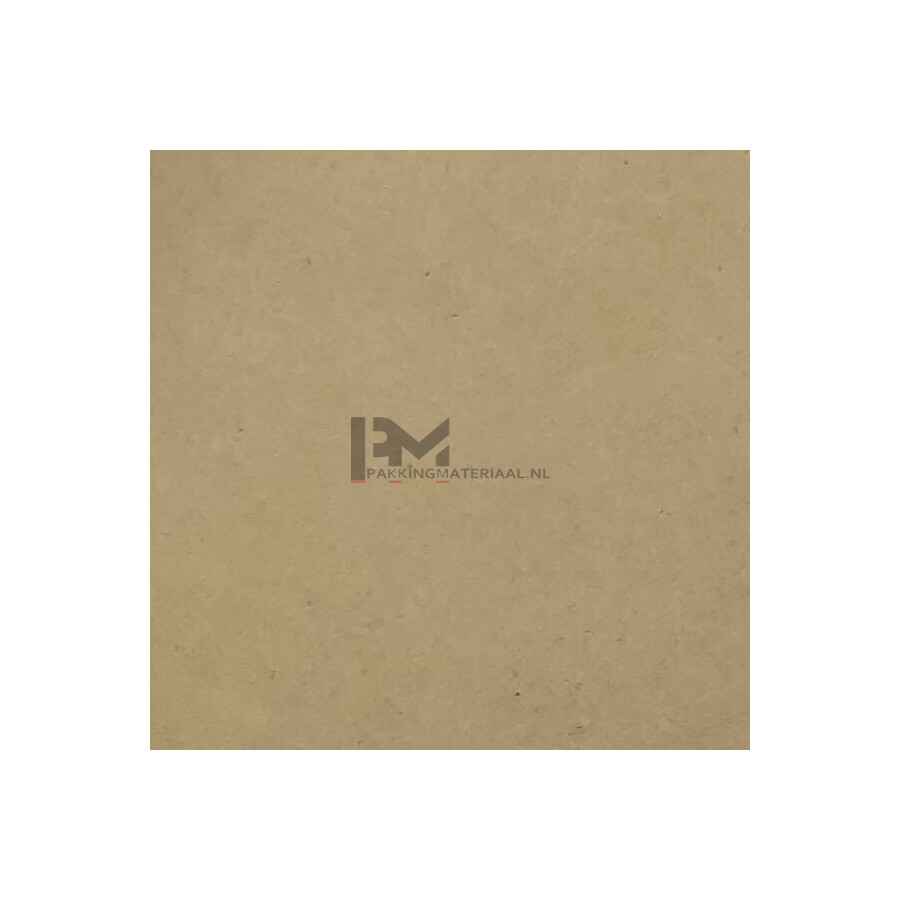

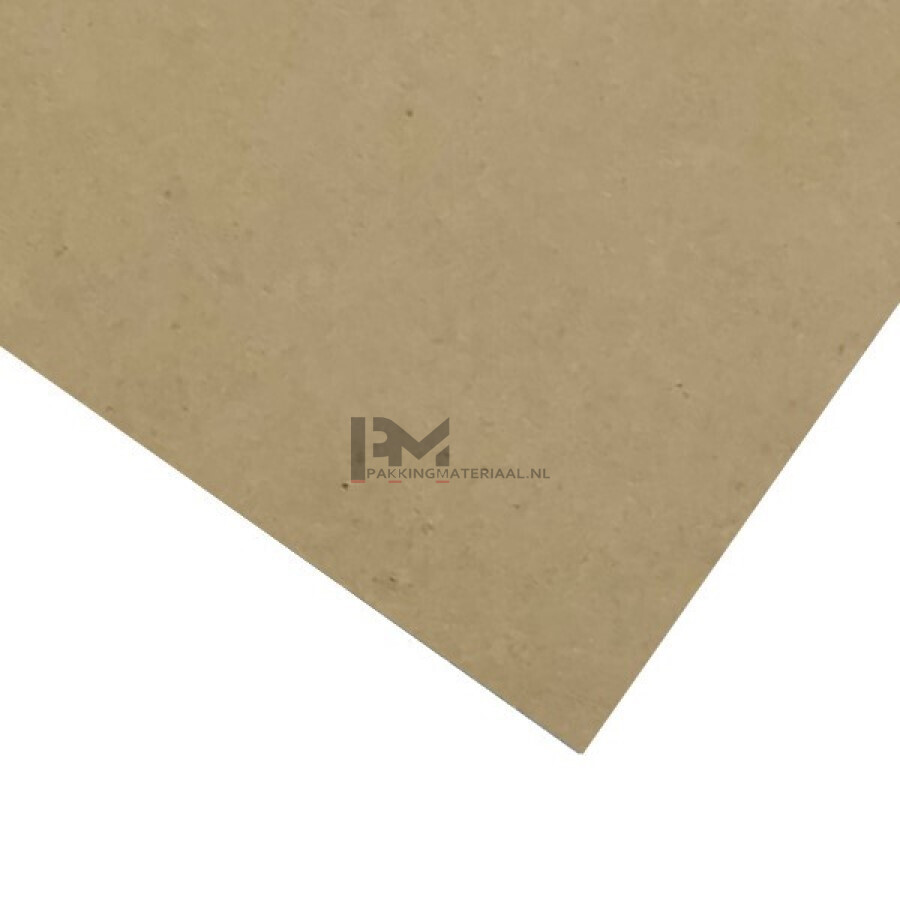

Gasket paper, thickness 0,25 mm, sheet dimensions 140 x 195 mm
Ideal for cutting gaskets yourself. These sheets of gasket paper are available in various thicknesses and dimensions so that a gasket can always be made.
Oil paper gasket paper is a type of gasket material specially designed to resist oils and greases. It consists of several layers of paper infused with oil-resistant substances, which gives it a high sealing capacity and provides a reliable seal for oil or fuel systems, for example. This type of gasket paper is therefore widely used in the automotive industry, but also in other sectors where machines or equipment use oil and grease.
- Oil resistant
- Fuel resistant
- Easy to cut
- Asbestos free
- Resistant up to 120 ° Celsius
Properties after immersion in fluids
- Increase in thickness in OIL 3 (IRM 903) ≤ 5\% ASTM F-146
- Increase in thickness in Fuel B ≤ 5\% ASTM F-146
- Increase in thickness Water ≤ 30\% ASTM F-146
- Weight increase in OIL 3 (IRM 903) ≤ 15\% ASTM F-146
- Weight increase in Fuel B ≤ 15\% ASTM F-146
- Weight increase Water ≤ 90\% ASTM F-146
Ideal for cutting gaskets yourself. These sheets of gasket paper are available in various thicknesses and dimensions so that a gasket can always be made.
Oil paper gasket paper is a type of gasket material specially designed to resist oils and greases. It consists of several layers of paper infused with oil-resistant substances, which gives it a high sealing capacity and provides a reliable seal for oil or fuel systems, for example. This type of gasket paper is therefore widely used in the automotive industry, but also in other sectors where machines or equipment use oil and grease.
- Oil resistant
- Fuel resistant
- Easy to cut
- Asbestos free
- Resistant up to 120 ° Celsius
Properties after immersion in fluids
- Increase in thickness in OIL 3 (IRM 903) ≤ 5\% ASTM F-146
- Increase in thickness in Fuel B ≤ 5\% ASTM F-146
- Increase in thickness Water ≤ 30\% ASTM F-146
- Weight increase in OIL 3 (IRM 903) ≤ 15\% ASTM F-146
- Weight increase in Fuel B ≤ 15\% ASTM F-146
- Weight increase Water ≤ 90\% ASTM F-146
Specifikationer
| Thickness (mm) | 0,25 |
| Max temp (°C) | 120 |
| Fuel resistant | |
| Oil resistant | |
| Easy cut | |
| Material | Oil paper |
| Density (g/cm³) | 0,78 |
| Colour | Brown |
| Tensile strength | 150 Kp/cm² |
